| 材质 | 涤纶 |
|---|---|
| 类型 | 高效 |
| 适用对象 | 粉尘 |
| 适用范围 | 油烟机,风机,空气净化器,吸尘器,医用,制糖,烤漆房 |
| 性能 | 耐酸,耐碱,耐高温,耐低温,防火,防水,防静电,防油 |
| 用途 | 防尘、除尘 |
| 编织方式 | 针刺 |
| 品牌 | 奥博 |
| 型号 | 奥博-8 |

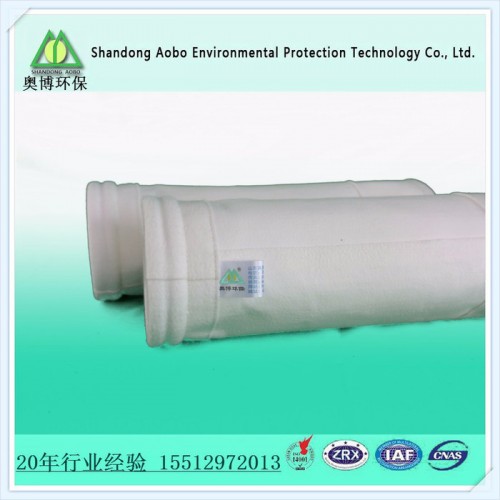

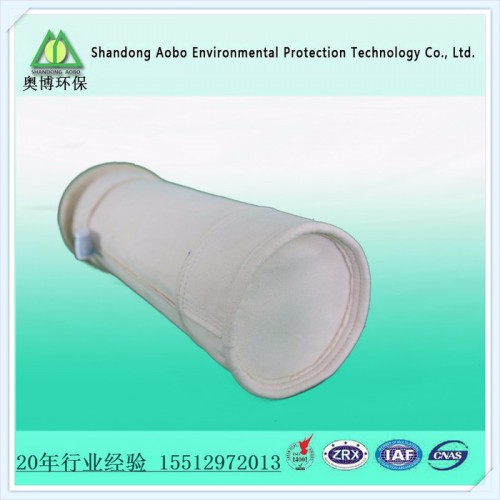

产品信息 名称： 涤纶防静电滤袋 品牌： AOBO 货号： AOBO-6 产品特点 优点：良好的导电性，可防止因静电产生爆炸、吸湿性好、强度高、用途广
Product information
Name: polyester antistatic filter bag
Brand: AOBO
Item no: AOBO - 6
Product features
Advantages: good electrical conductivity, can prevent electrostatic generation explosions, good moisture absorption, high strength, wide application
涤纶防静电滤袋：
防静电滤袋在过滤材料中植入导电纱或混有导电纤维、不锈钢纤维后，滤料具有抗静电功能，可用于静电、易爆和易燃的含尘烟气过滤。一般的工业粉尘在浓度达到一定程度后（即爆炸极限）如遇静电放电火花或外界点火等因素，则极易导致爆炸和火灾，如：面粉尘、化工性粉尘、煤粉尘等如遇静电放电都有爆炸的可能。在袋式除尘领域，如这些粉尘需用布袋来收集，则要求加工除尘布袋的滤料具有防静电性，在使用过程中能够释放积聚在含尘气体和滤料表面上的电荷，防止电荷放电产生火花导致爆炸。
Polyester antistatic filter bag:
Antistatic filter bag in the filtering material implanted conductive yarn or after mixed with conductive fiber, stainless steel fiber, liao has anti-static function, can be used for protecting electrostatic, explosive and combustible dust filter. Generally in industrial dust concentration reaches a certain extent after (that is, the explosion limit) in case of electrostatic discharge spark or external factors such as ignition, is easy to cause the explosion and fire, such as: surface dust, chemical dust, coal dust, etc. In case of electrostatic discharge has the possibility of explosion. In the field of bag dust removal, such as need a bag to collect the dust, insist on processing dust bag filter material has anti-static, in use process can release accumulated in dust and gas filter material on the surface of the charge, prevent charge discharge spark to explode.
应用场合：
1、煤磨系统除尘（水泥、电厂等）
2、焦化厂出焦、备煤系统除尘
3、木器材加工厂除尘
4、粉末设备
5、具有易燃、易爆特性的工况除尘
Applications:
1 dust, coal mill system (cement, power plant, etc.)
2, coking plant, coke, coal dust removal system
3, wood dust removal equipment plant
4, powder equipment
5, working condition of dust removal with inflammable, explosive properties
Execution standard:
1, environmental protection product technical requirements - bag filter filter bag (HJ/T327-2006
2, bag filter technology request of GB/T6719-2009
3, power plant air pollutants emission standards GB13223-2011
4, living garbage incineration air pollutants emission standards DB11502-2008
执行标准：
1、环境保护产品技术要求—袋式除尘器滤袋 HJ/T327-2006
2、袋式除尘器技术要求 GB/T6719-2009
3、火电厂大气污染物排放标准 GB13223-2011
4、生活垃圾焚烧大气污染物排放标准DB11502-2008
性能参数：
| 序 号 | 名 称 | 单 位 | 参 数 | 备 注 |
| 1 | 纤维层 |
| 聚丙烯 |
|
| 2 | 基 布 |
| 聚丙烯 |
|
| 3 | 克 重 | g/m2 | 500 |
|
| 4 | 厚 度 | Mm | 1.8 |
|
| 5 | 透气量 | M3/m2.min | ≥15 |
|
| 6 | 纵向断裂强度 | N/5*20cm | ≥900 |
|
| 7 | 横向断裂强度 | N/5*20cm | ≥1200 |
|
| 8 | 长期使用温度 | ℃ | 露点温度以上900℃以下 |
|
| 9 | 短时使用温度 | ℃ | 120 | 120每次不超过10min |
| 10 | 后处理 |
| 轧光或涂层、高温定型 | |
公司一角
实验室
奥博是高端复合型人才孵化基地。现有工程技术人员40人，其中高级技术人员16人，中级技术人员8人， 每年委派不少于10人到高校进行培训，并聘请相关专家、教授进行指导，大力提升技术人员的研发能力。通过人才定向培养与交流，打造出一支精干、专业的科研队伍，为公司长期发注入了新的活力。
奥博立足科技创新，致力工业除尘，先后投资3000多万元，建成了2000多平方米的科研中心，成立了山东省袋式除尘唯一工程技术研究中心。公司先后引进数字式透气仪、电子织物强力机、全能型可见光谱分析仪、风动洞过滤效率测试线等研发试验设备30余台（套），总价值1000余万元，在国内同行业处于领先水平。
's high-end talents for incubators. Existing engineering and technical personnel 40 people, including senior technical personnel 16 people, intermediate technical personnel 8 people, appointed each year not less than 10 people to the training of colleges and universities, and invite relevant experts, professors, guide, vigorously promote technical personnel's research and development ability. Through the orientation training and communication, to create a compact, professional r&d team, long hair has injected new vitality to the company.
Ordered based on scientific and technological innovation, is committed to industrial dust removal, has invested more than 3000 ten thousand yuan, has built more than 2000 square meters of scientific research center, set up in shandong province, the only engineering technology research center of bag-type dust collector. Company has introduced digital air meter, electronic fabrics strength machine, universal visible spectrum analyzer, pneumatic hole filter efficiency testing line, such as research and development testing equipment more than 30 Taiwan (sets), the total value of more than 1000 ten thousand yuan, in the same industry in a leading level in China.
诺梅克斯除尘滤袋
孝义兴安化工有限公司热电厂 2*150MW机组袋式除尘配套工程 AOBO-2型PPS/PTFE滤袋 投运时间2012年、2014年 Xiaoyi sing-an chemical co., LTD. Supporting engineering of bag-type dust collector of 150 mw thermal power plant 2 * AOBO time - type 2 PPS/PTFE filter bag was put into operation in 2012, 2014
vs AOBO-除尘滤袋
兖矿集团国宏化工有限公司热电厂 3*50MW机组袋式除尘配套工程
AOBO-2型PPS/PTFE滤袋 投运时间2014年
Yankuang group, the macro chemical co., LTD. Power plant 3 * 50 mw unit supporting engineering of bag-type dust collector
AOBO time - type 2 PPS/PTFE filter bag was put into operation in 2014
企业介绍
截至目前公司共完成国家级科技创新项目四项（“863”、火炬计划、国家级新产品计划、创新基金），省级创新项目七项，市级技术创新项目十余项，已授权专利15项，其中发明专利4项。截止目前公司参与编制国家、行业和地方制标准六项，现在现行的山东省大气污染排放标注就是由我公司参与编制。标准的编制有力地提升了在行业制高点，有效地催生了市场，提升了产品的附加值。 公司现有生产和研发中心建筑面积达10万平方米，配备先进检测仪器设备30余台套。并与山东省科学院新材料研究所、东华大学和东北大学国家滤料检测中心建立了科技合作关系，成为合作单位硕士研究生工作站。公司技术中心2011年被山东省科技厅批建为“山东省袋式除尘工程技术研究中心”， 2012年被评为山东省企业技术中心。公司2013年被认定为省级高新技术企业。
依靠科技进步公司产品质量不断提高、商业模式不断更新市场份额逐年递增，在垃圾焚烧、钢铁冶金、燃煤电厂等相关除尘领域不断拓展，服务范围涉及滤袋销售、设备制造、服务外包运营、BOT项目等多种合作渠道，并成功与华能电力、华电国际、中联水泥等大型企业合作。
So far the company has completed four state-level scientific and technological innovation projects (" 863 ", the torch plan, national new product plan, innovation fund), seven provincial innovation projects, more than 10 municipal technical innovation projects, 15 authorized patents, of which 4 invention patents. So far the company to participate in the preparation of national, industry and local standard six, now the current atmospheric pollution emissions is marked by our company in shandong province to participate in. Standard establishment vigorously promoted the commanding heights in the industry, has given rise to market effectively, improve the added value of products. Company's existing production and research and development center building area of 100000 square meters, equipped with advanced testing equipment more than 30 sets. And new materials research institute of shandong academy of sciences (liao, donghua university and the university of the northeast countries test center set up scientific and technological cooperation relationship, become partners graduate workstation. Company technology center in 2011 is shandong province department of group building for engineering technology research center of bag-type dust collector in shandong province ", was named in 2012 in shandong province enterprise technology center. The company in 2013 was identified as the provincial high-tech enterprises.
Rely on scientific and technological progress the company constantly improve the product quality and business model updating market share is increasing year by year, in waste incineration, steel, metallurgy, coal power plant dust areas related to continue to expand, services ranging from filter bag sales, equipment manufacturing, service outsourcing operations, BOT project, and other channels of cooperation, and success and huaneng power, huadian power international, China united cement and other large enterprises.
