| 加工定制 | 否 |
| 种类 | 三菱花样机 PLK-E2516R 电脑车 电子花样机 |
| 用途 | 三菱花样机 PLK-E2516R 电脑车 电子花样机 |
| 自动化程度 | 全自动 |
| 适用厚度范围 | 厚料机 |
| 线迹类型 | 单针锁式线迹 |
| 适用场所 | 工厂用 |
| 作用对象 | 皮革 |
| 驱动形式 | 电动 |
| 针数 | 单针 |
| 线数 | 单线 |
| 机头数 | 单头机 |
| 产品类型 | 全新 |
| 外形尺寸（长*宽*高） | 1200*800*600（mm） |
| 整机重量 | 136（Kg） |
| 产品别名 | 三菱花样机 PLK-E2010R |
| 品牌 | Mitsubishi/三菱 |
| 型号 | PLK-E2010R |

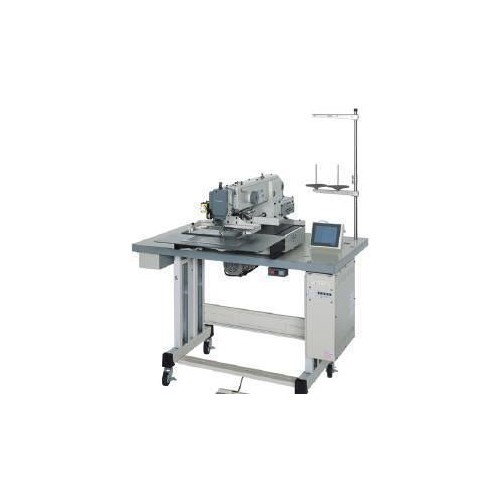

三菱电子花样机电脑车
PLK-E2010R
三菱电脑车，车缝范围：200X100mm 可以车手挽、交叉、方形、胶圈、简单的花样等。适用于手袋厂、皮具厂、箱包厂、制衣厂、户外用品厂等。
Electronically Controlled Pattern Sewing Machines
PLK-E2010R
Middle Area Pattern Sewing Machine
|  |  |
|
|
| * | High speed | | | Max. Sewing Speed : 2,300 rpm | | * | Versatility | | | EQUIPPED WITH THE SIMPLE PROGRAM ConTROLLER FUNCTION | | * | Easy operation | | | LIQUID CRYSTAL TOUCH OPERATION PANEL | | * | Confortable environment | | | SERVO-MOTOR DRIVING
Well-known MITSUBISHI LIMI SERVO-X MOTOR is applied as the main driving motor. |
|
| |
 | | | Stitch type | Single needle, lockstitch | | Sewing area | (X)200mm x (Y)100mm | | Max. sewing speed | 2,300 rpm
(Sewing speed may be limited by the operation, material or clamp mass.) | | Sewing speed selection | 200 - 2,300 rpm (10 steps variable) | | Feeding system | Intermittent or continuous | | Stitch length | 0.1 - 12.7mm
(minimum resolution 0.1mm) | | Pattern data storage media | Internal memory or
3.5" 2HD Floppy disc | | Max. number of stitches | 8,000/pattern | | Scale-up/down function | 10 - 200% for each X. & Y. axis
(0.1% increment/step) | | Hook | Double size rotary hook | | Needle | DPx17#18(Standard) | | Work holder lift | Max. 25mm | | Stepping foot lift | Max. 18mm | | Stepping foot stroke | 4 - 10mm(Adjustable) | | Main driving motor | Limi-servo X550W | | Power | 220-240V, 1 or 3phase, 0.7KVA(standard)
110-120V, 380-415V, 0.7KVA(optional) | | Measurement | W1,200mm D920mm H1,170mm | | Mass | 136kg |
|
