| 别名 | 分条机 |
|---|---|
| 产地 | 江苏 |
| 分切速度 | 70m/min |
| 类型 | 分切机 |
| 收卷直径 | 600mm |
| 外形尺寸 | 1265*1030*600cm |
| 用途 | 切断 |
| 种类 | 切条机 |
| 重量 | 890kg |
| 总功率 | 7.5KW |
| 品牌 | 圣顿机械 |
| 加工定制 | 是 |
| 收卷轴 | 分张力气胀轴 |
| 原料宽度 | 600mm |
| 原料直径 | 600mm |

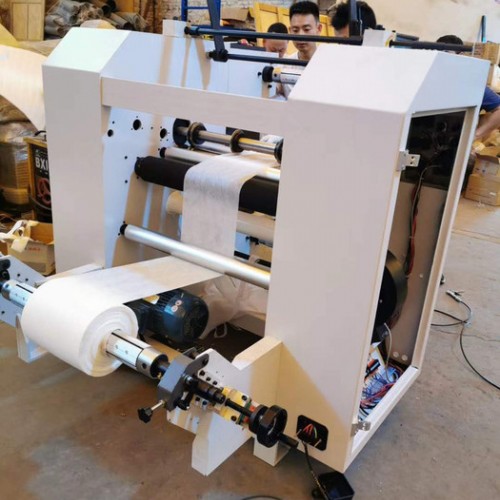

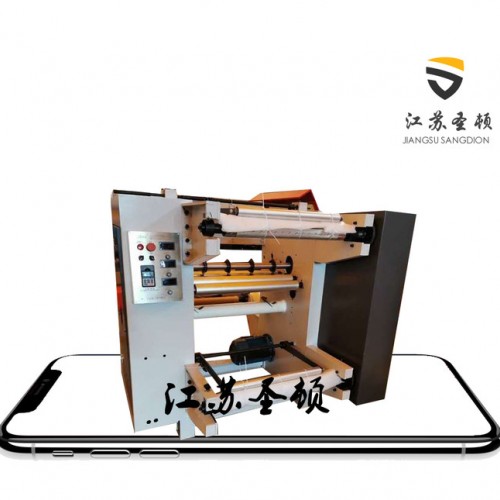

用途 ： 又名裁条机、切条机、直斜纹布分切机。适用于布类、无纺布、帐篷、雨伞、水上游艇、泡棉、皮革、塑胶等材料的各种宽度的分条作业，是服装、箱包、鞋帽、服装**、反光材料厂、篷布厂、雨伞厂、旅游用品厂等行业的理想选择。通常与斜切卷布机、园刀磨刀机配套使用。
特点:
1、主轴与圆刀使用无级变速系统，可任意调速及正反转切换控制。
2、采用进口滚珠滑轨，平行推进切割宽度，配合进口精密滚珠丝杆及滑轨，控制切割宽度，达到高精度切割。
3、采用变频调速系统控制刀的转速，无极调整控制切割速度平移且不易磨损，达到高品质切条。
4、操作界面使用可编程序控制中文显示屏，可直接输入几种裁切宽度和数量设定，并设有手动、自动转换功能。
5、采用快速放料设计，一步到位。上料下料只须一个动作即可完成。
Usage:
Also knownas cutting machine, cutting machine, straight twill cutting machine. Suitablefor various widths of cloth, non-woven fabrics, tents, umbrellas, water yachts,foam, leather, plastics, etc., is clothing, bags, shoes and hats, clothingaccessories, reflective materials factory, tarpaulin Ideal for industries suchas factories, umbrella factories, and travel goods factories. Usually used withthe beveling machine and the garden knife sharpener.
Features:
1. Thespindle and the circular knife use the stepless speed change system, which canbe controlled at any speed and forward and reverse.
2, the useof imported ball slides, parallel advancement of the cutting width, withimported precision ball screw and slide rails, control the cutting width, toachieve high-precision cutting.
3, the useof variable frequency speed control system to control the speed of the knife,stepless adjustment control cutting speed translation and not easy to wear, toachieve high quality cutting.
4. Theoperation interface uses the programmable control Chinese display, which candirectly input several cutting width and settings, and has manual andautomatic conversion functions.
5, usingrapid discharge design, one step in place. Loading and unloading can be done inone operation.
