| 产地 | 浙江 |
|---|---|
| 电机功率 | 18 |
| 锭距 | 205MM |
| 锭数 | 288锭 |
| 品牌 | 万久精工 |
| 型号 | LB-199 |

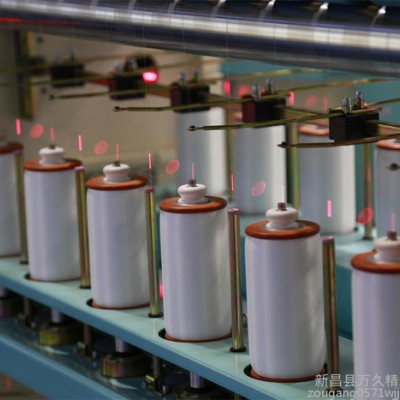

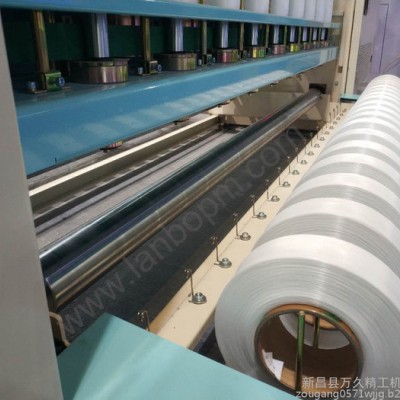

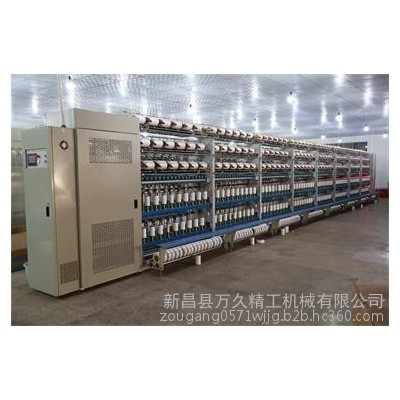

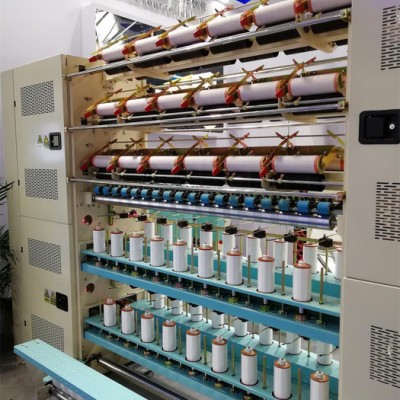

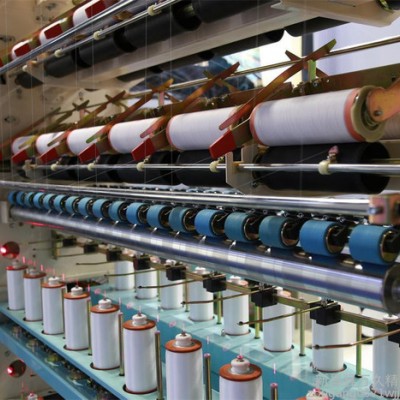

LB-199 三层卷绕包覆纱机
Three Layer Take-up Bobbin Yarn Covering Machine
包覆纱机配备全电脑控制系统，可用于生产氨纶单双包纱线，由于机器可以使用220mm长管生产，可以节省人工成本约30%。操作简便, 高度合理。
Yarn Covering Machine with full computerized control system is applicable to make the single and double covered yarn. The spandex/ Lycra as the core yarn and covered with cotton yarn, polyester yarn, nylon yarn etc. B/c it use use the 220mm take-up bobbin, it can save labour cost at least 30%. This type machine is easy for operation, the height is reasonable.
技术参数：
Technical parameter:
| 样式 Type | 双面三层 Two sides and three layers |
| 机器尺寸 （mm）长*宽*高 Size (mm) L*W*H | 16650*1400*2300 |
| 功率 （kw） Power (kw) | 13/15/18.5/ 23 |
| 锭子数量 The Number of Spindles | 192/256/288 |
| 锭子转速范围 （r/m） The Speed of Spindles(r/m) | 9000-16000 |
| 捻度范围 （T/M） Range of Covering Twist Number(T/M) | 200-3000 |
| 捻向 Twist Direction | S or Z |
| 铝纱管尺寸（mm） Bobbin Size (mm) | D 84* d 36*140 |
| 拉比 Elongation Time | 1.6-6 |
| 外包丝容量 Capacity of Covering Yarn | 少于1000g Less than 1000g |
| 卷取成型方式 Take up Forming Mode | 电子成型 Electronic forming |
| 卷取管尺寸 Take up Bobbin size | d 56*D 62*L220/ L 160mm |
| 速度控制 Speed Control | 变频器+电脑控制系统 INVERTER/ Computer Program |
