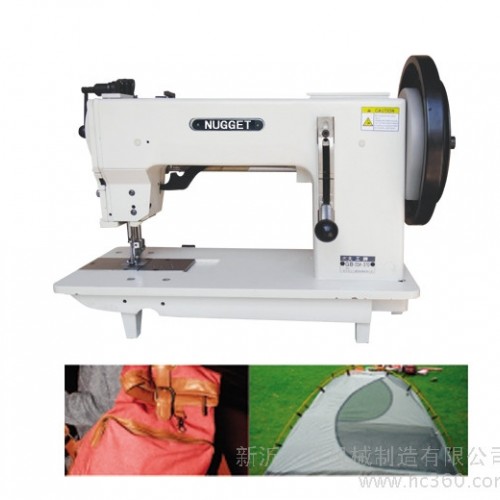

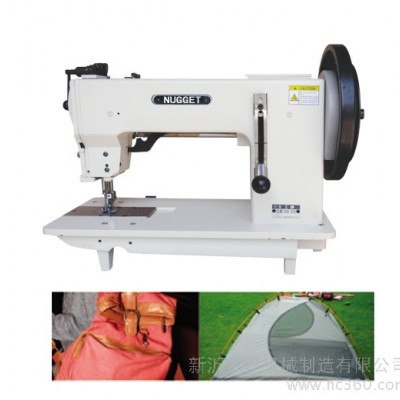

供应厚料综合送料缝纫机 GB_204-370厚料综合送料缝纫机 新沂金垦机械制造有限公司

产地	江苏
产品类型	全新
机头数	1
驱动形式	电动
适用场所	工厂用
线迹类型	其它
线数	其他
用途	缝纫设备
针数	自定义
整机重量	90
作用对象	皮革
自动化程度	自动
品牌	金垦
型号	GB_204-370

特点及用途;204极厚料机有特大的桶形摆梭是特殊设计，用于处理一些极厚料和使用极粗缝线。车缝厚皮制品、技术性纺织品和家具内装潢等工艺，只是204能被广泛用应在特殊缝纫操作的一小部分而已。性能特点：1. 的线缝构成和紧密不变的线迹2. **优化的三同步送布动作确保不变的针距长短3. **长针距长度可达12 mm4. 较高的交替送布压脚冲程5. 专业的缝纫附件和面料导引器确保一贯**的线迹和**的线缝构成6. 桶形大摆梭和大容量梭心保证特长缝纫循环周期7. 采用凸轮挑线，特别适应高低重叠和爬坡缝纫8. 适应于安全带、帐篷、座椅、鞋类、箱包类、高尔夫球袋等极厚料之车缝。SPECIAL FEATURES& APPLICATIonSThe 204 class sewing machine with large barrel shuttle bas been specially designed for processing the extreme thread and material thichnesses of heavy weight materials.Seams of leather goodsm the manufacturing of technical textiles and special sewing tasks when processing leather products and upholstery1. excellent stith pattern and constantly tight stitches2. constant stitch lengths due to optimized triple feed kinematics3. long stitch lengths up to 12mm4. high top feed stroke and high sewing foot stroke5. always perfect seam appearance and exact seam contours by means of expert adaptation of sewing equipment and fabric guides6. long sewing cycles by barrel shuttle with lar**bbin capacity7. Special in feed cam gear, could be used to overlapping and climbing stitch .8. Suitable for stitching all the extra heavy-weight materials,such as safety belts,tents,seatings,shoes,bags,golf bags,……etc.规格Specifications:**高缝速 MAX SEWING SPEED : 800s.p.m**大缝目 MAX STITCH LENGTH :12.mm压脚提升 LIFT OF PRESSER FOOT :20mm使用机针NEEDLE SYSTEM :DD*1工作空间 WORKING AREA:320*185mm机头外型 SHAPE OF HEAD:700*300*550
