自动化程度 | 半自动 |
---|---|
适用厚度范围 | 厚料机 |
适用场所 | 工厂用 |
作用对象 | 织物 |
驱动形式 | 电动 |
机头数 | 单头机 |
外形尺寸(长*宽*高) | 760*600*530(mm) |
整机重量 | 70(Kg) |
产品别名 | 缝纫机 |
别名 | 厚料缝纫机 鞋机 |
产品类型 | 全新 |
电动机功率 | 500 |
电压 | 380(V) |
规格 | 70/80/90 |
外形尺寸 | 110/120/120 |
用途 | 手提袋的手柄、棒球手套、安全带、帐篷、椅垫、鞋类、箱包类等极厚料之缝制 |
种类 | 特种缝纫机 |
重量 | 97 |
是否库存 | 是 |
品牌 | 金垦 |
型号 | GB-205-370 |
加工定制 | 是 |

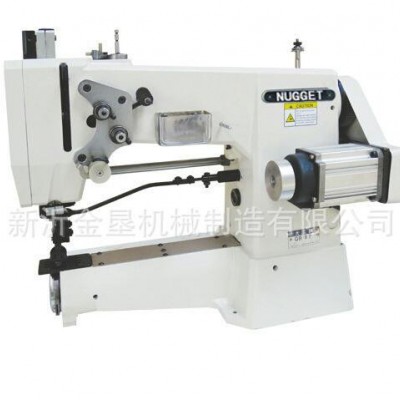

厚料综合送料筒形缝纫机 GB-205-370
Heavy duty union feed cylinder-bed sewing machine
特点及用途;
205锁缝筒式底板缝纫机,可进行有难度的三维缝料缝纫操作,例如用于加工内装潢和家居用品的粗厚皮革制品时,充分展示了它的实力。它强劲稳重的设计、尤其是高效的三同步送料动作,即使使用极粗的缝线、缝纫粗厚的材料也能确保缝纫质量。
1.卓越的线迹构成喝紧密不变的线迹
2.高效的三同步送布原理确保针距不变
3.针距长为10MM
4.较高的上送布冲程和交替压脚冲程
5.大面积的工作空间方便操作
6.专业的缝纫配件和面料导引器确保**的线迹构成喝**的缝线轮廓
7.桶形大摆梭和大容量梭心使缝纫循环周期增长
8.适应于手提袋的手柄、棒球手套、安全带、帐篷、椅垫、鞋类、箱包类等极厚料之缝制。
The lockstitch free-arm machines of class 205 shows their strength in case of difficult sewing operations on three-dimiensional workplaces, e.g. when processing thick leatherin the production of home upholstery and object furniture. Their heavy,extremely sturdy design and the especially efficient and powerfull triple feed ensure a maximum sewing quality, particularly when using extremely thick fabrics and threads.
1. Excellent stitch pattern and constantly tight stithes
2. constant stitch lengths due to optimized triple feed kinematics
3. long stitch lengths up to 10mm
4. high top feed stroke and high sewing foot stroke
5. unhindered handling of bulky workpieces
6. always perfect seam appearance oand exact seam contours by means of expert adaption of sewing equipment and fabric guides
7. long sewing cycles by barrel shuttle with lar**bbin capacity
8. Suitable for stitching all the extra heavy-weight materials,such as the handle of bags,gloves, safety belts,tents,
seatings,shoes,bags,……etc.
规格Specifications:
**高缝速MAX SEWING SPEED : 800r.p.m
**大缝目MAX STITCH LENGTH :10.1mm
压脚提升LIFT OF PRESSER FOOT :20mm
使用机针NEEDLE SYSTEM :DD*1
工作空间WORKING AREA:320*185mm
